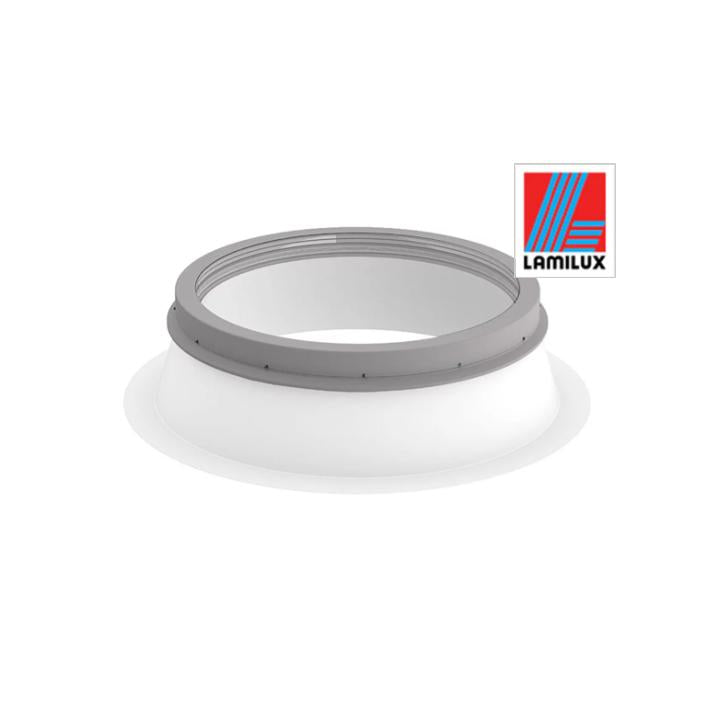

Lamilux FE Circular

Name: Lamilux FE Circular
Brand: 475 Daylight
Availability: OutOfStock

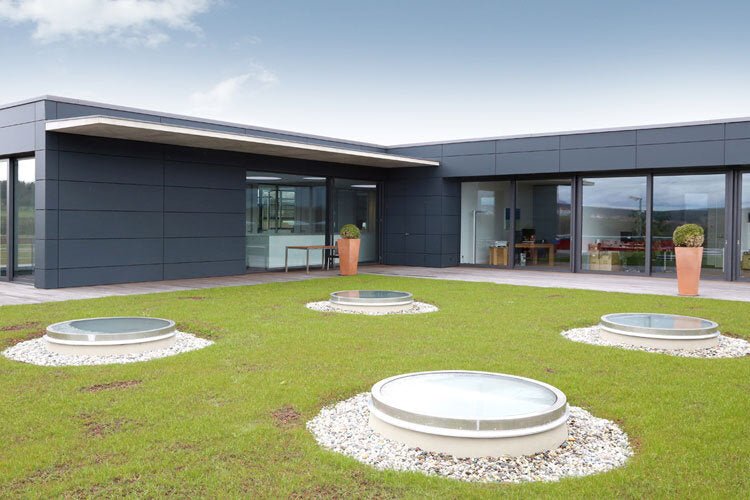

The Lamilux FE Circular is a round, triple pane, glass skylight with a circular Integrated Glass Unit. The innovative insulated aluminum curved frame and hinge system make it attractive to architects, designers and building owners alike.

It is available with triple glazing and optimized SHGC. Fitted on a circular, thermal bridge free, fully insulated curb made of fiber-reinforced composite. LAMILUX’s thermal-bridge-free product lines provide maximum energy efficiency in an award-winning design.

475 USA

Specifications

• The aluminum frame is fully insulated to mitigate thermal bridges and condensation at the interior
• Triple pane glass and airtight construction minimizes sound transmission from the exterior
• Completely pre-assembled skylight solution mounted on an insulated curb for plug-and-play installation on any roof below 6:12 pitch

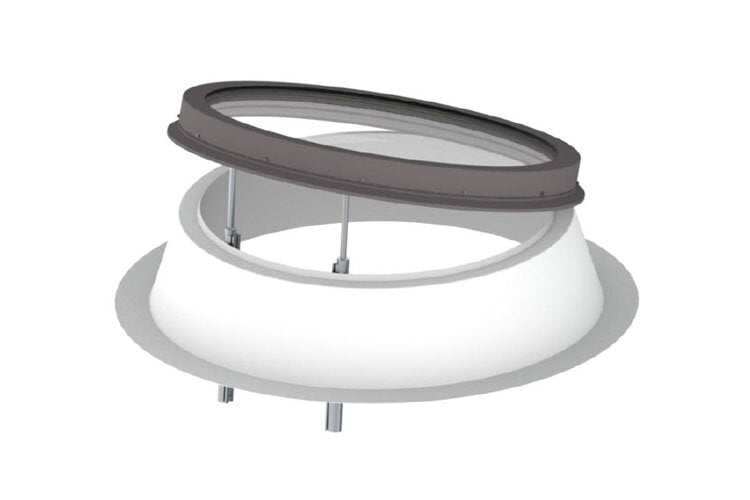

• Customizable through motor operability, alternate glazing options and curb heights, and powder coating of skylight frames in color of your choice

Dimensions

Diameter Sizes (approx. opening sizes)
• 35 7/16” (900mm) - stock
• 39 3/8” (1000mm)
• 47 1/4” (1200mm)
• 59 1/16” (1500mm)
• 70 7/8” (1800mm)
• 78 3/4”(2000mm)
• 86 5/8" (2200mm)

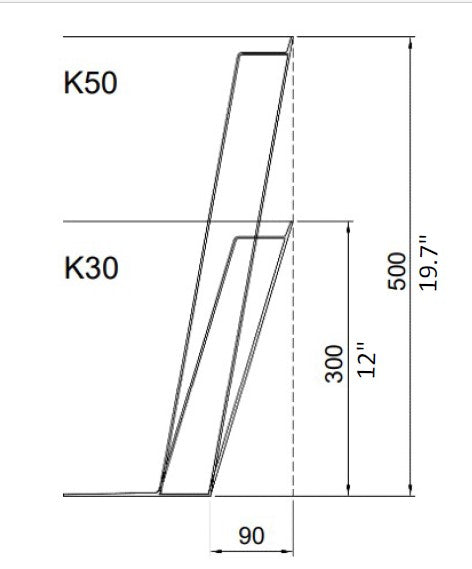

• Standard curb height: 11.8” (300mm)
•Optional 19.7” (500mm), with or without 5 degree
build in slop
• or 27.6" (700mm)

Accessories

• Can be installed in roof pitches as low as 3°, >5° recommended to keep glass clean. Max roof pitch 25° (6:12 pitch)
• Uglass: 0.6 W/m2K (0.105 BTU/hr.ft2.°F ) per EN 673
• Upstand of 11 ¾” or 19 ¾” insulated with 2 3/8" PU foam
• SHGC: 0.30 (as high as 0.49 or as low as 0.20 by special order)
• Visual Transmittance: 0.60 (varies for alternate SHGCs)
