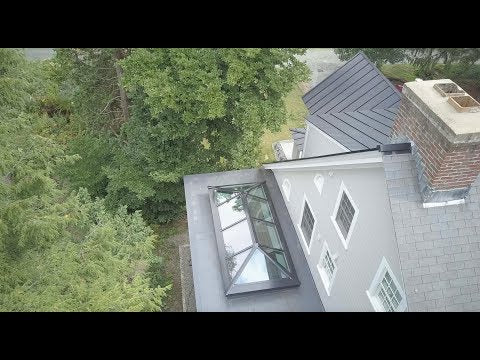

Lamilux PR-60 Glass Roof System

• Extremely stable supporting structure made of rigid aluminum
• Efficient ventilation of glass
• Roof safety in line with EN 13830 (under 2° installation pitch)
• Water tightness against driving rain EN 12154 / EN 12155 / RE 1950
• Airtightness EN 12152 / EN 12153 / AE 1950 Pa
• Resistance to wind load EN 13116 / EN 12179/ 2000 Pa permissible load and 3000 Pa increased load
• Heat transfer coefficient of the jambs and transoms (Um/t) have a U-value of 0.23 to 0.13 BTU/hr.ft².°F (1.3 to 0.74 W/m².K) (depending on glazing thickness)
• Heat transfer coefficient of the jambs and transoms is the most efficient in the industry
• RAL powder coating of skylight frames in color of your choice
• Passive house certified system
• Life Cycle Assessment made easy: comprehensive Environmental Product Declaration in accordance with DIN EN 15804, DIN EN ISO 14040, DIN EN ISO 14044 and EN ISO 14025

• Practically no design constraints between 0° to 90°

• Available in double- and triple-pane as well as PHI Certified system
• Insulating glazing Ug value: 0.19 to 0.08 BTU/hr.ft².°F (1.1 to 0.5 W/m².K) with laminated safety glass
• Surface temperature factor fRsi: 0.66 to 0.83 (depending on glazing thickness)
• Comprehensive soundproofing: Soundproofing demonstrated in system test in as-installed state as per EN 10140-2 up to 46 dB

• An overlapping multi-stage sealing system, designed without direct joints and a secondary drainage in the inner sealing layer combines with a joint-free, continuous drainage plane
• EPDM secondary draining leads to defined glazing clamping system based on insulating spacer webs and elastic bedding of glass panes
• Controlled water and condensate draining
