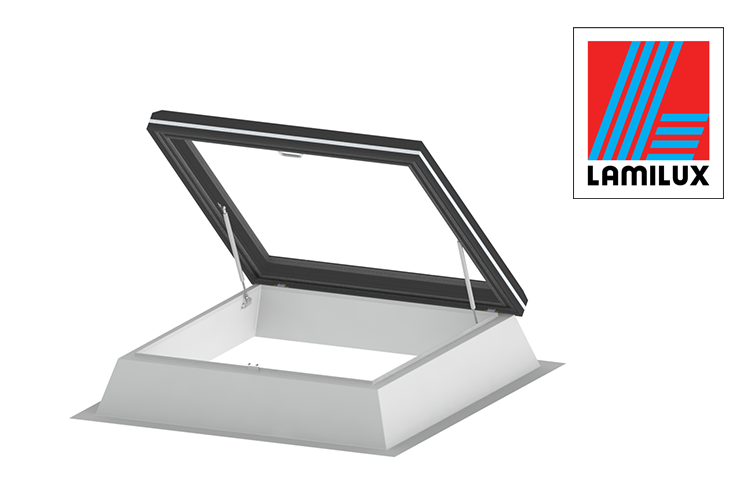

LAMILUX FE Exit Hatch

• Kink free isotherms maximize the efficiency of the installed skylights and minimize heat loss and risk of condensation. This fine tuned and engineered solution from Germany minimizes losses and maximizes the amount of daylight provided.
• This thermal bridge free, continuously insulated curb is included with skylight and its wide horizontal flanges make installation very simple.
• Airsealing class – 3 (DIN EN 12207)

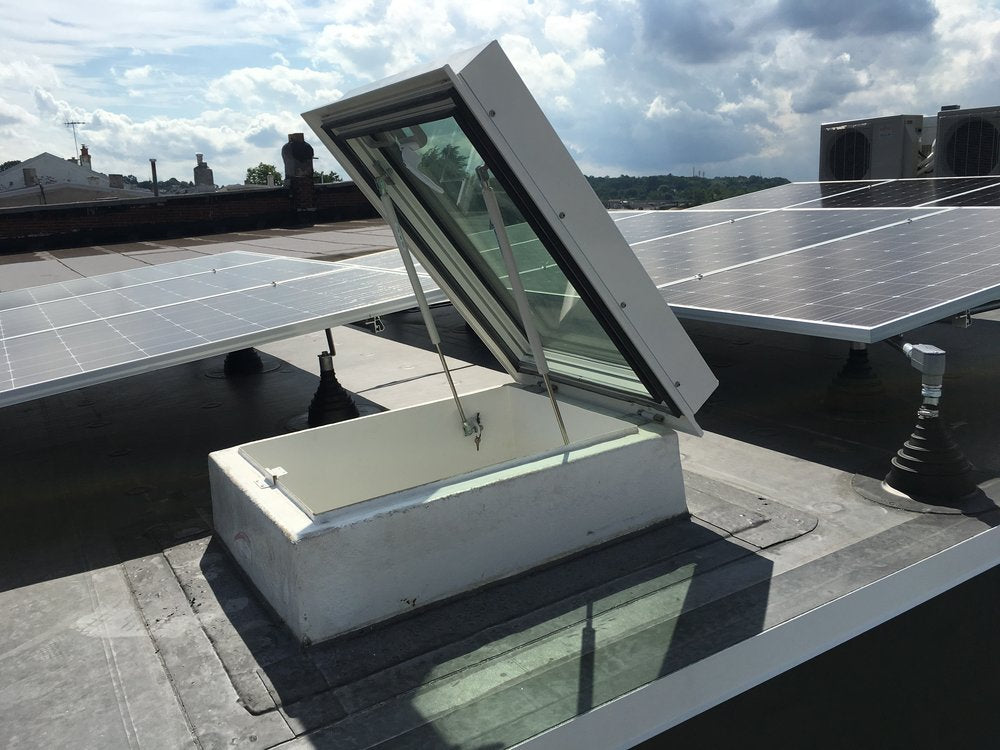

• Includes pneumatic pistons for opening
• Visible part cold rolled aluminum finish
• Can be installed in roof pitches as low as 3°, >5° recommended to keep glass clean. Max roof pitch 25° (5.6:12 pitch)
• RAL powder coating of skylight frames in color of your choice

• Glass top curb opening size (approx.)
(Sizes in stock)
• 28.3″x 28.3″ (720mm x 720mm)
• 28.3″x 40.2″ (720mm x 1020mm)
• In special order size: 33.1″ square (lead time 13 weeks)
*Size sheet for all sizes available for download at the bottom of the page.
• Upstand of 7.9″ (200mm) insulated with 2-3/8″
(60mm) PU foam

• Uglass: 0.11 BTU/hr.ft².°F (0.6 W/m².K)
• SHGC: 0.32 (as high as 0.49 by request)
• Visual Transmittance: 0.60

• Uglass: 0.105 BTU/hr.ft2.°F (0.6 W/m2K) per EN 673
• Upstand of 7 7/8" (200 mm) insulated with 2 3/8" (60 mm) PU foam (0.023 W/mK)
• SHGC: 0.32 (as high as 0.49 by request)
• Visual Transmittance: 0.60
• Snow load: 28 psf (1.34 kn/m2)
• Can be installed in roof pitches as low as 3°, >5° recommended to keep glass clean. Max roof pitch 25° (6:12 pitch)
