Name: Lamilux Flat Roof Exit Comfort Solo
Brand: 475 Daylight
Availability: OutOfStock

Lamilux Flat Roof Exit Comfort Solo

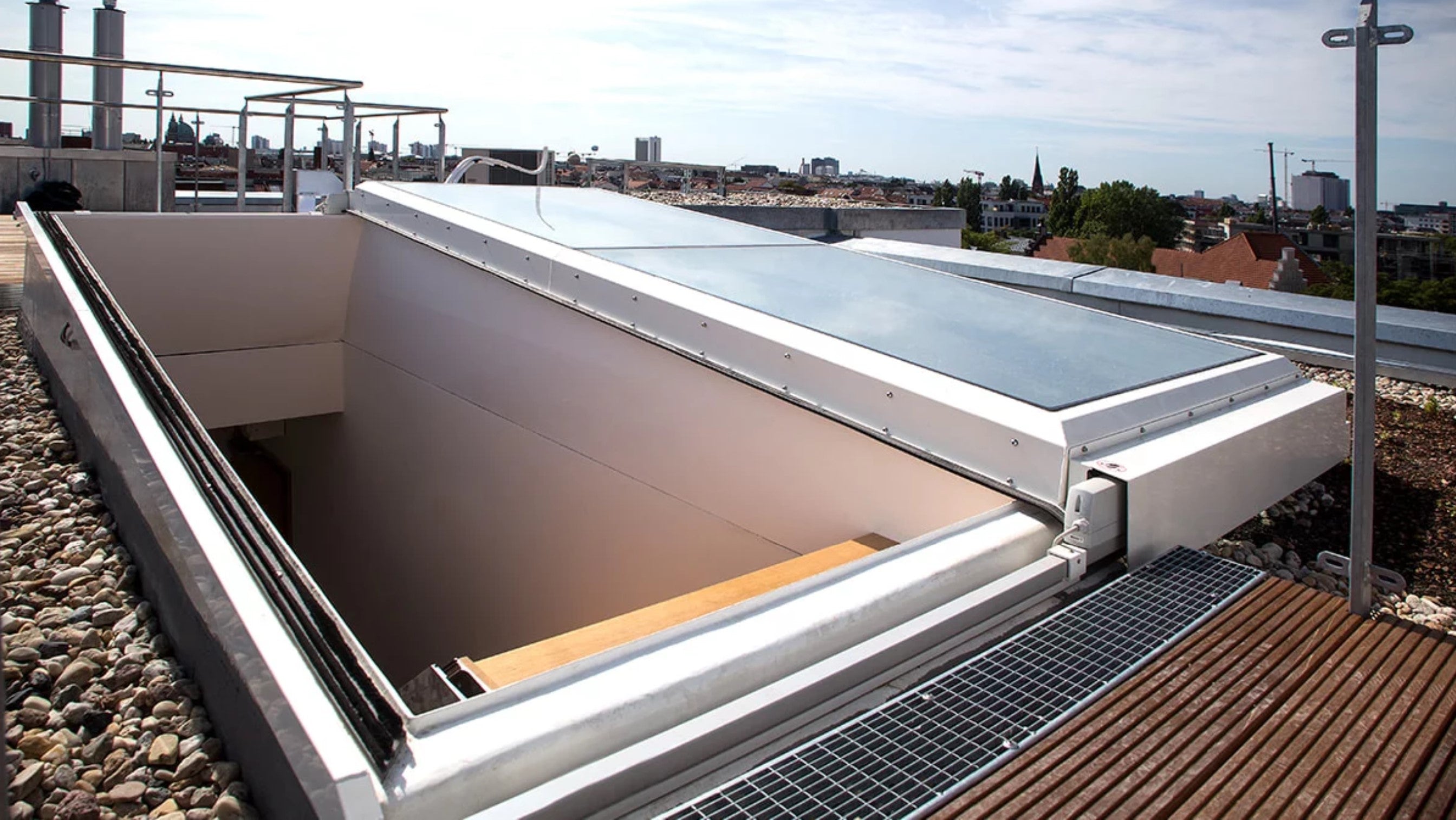

The Lamilux Comfort Solos is a motorized roof exit hatch with sliding glass field for stairway access to roofs. Thermally continuous assembly with fully insulated curb and frame.

Specifications

• Preassembled for plug and play installation: skylight, motor opener, and upstand
• Low profile – allows 360° view from roof deck
• Motorized operation with visual sensor to trigger emergency stop
• Operable from the exterior via an added control
• Insulated fiberglass curb makes thermal bridge free installation simple, fast and reliable, minimizing heat loss
• Thermo active design engineered solution from Germany to raise surface temperature and prevent condensation on interior of unit
• RAL powder coating of skylight frames in color of your choice
• Certified to UL325

Dimensions

• Bottom opening size: 47 1/4" x 137 13/16" (1200mm x 3500mm)

Glazing Details

• Glass: tempered exterior, laminated safety glass interior

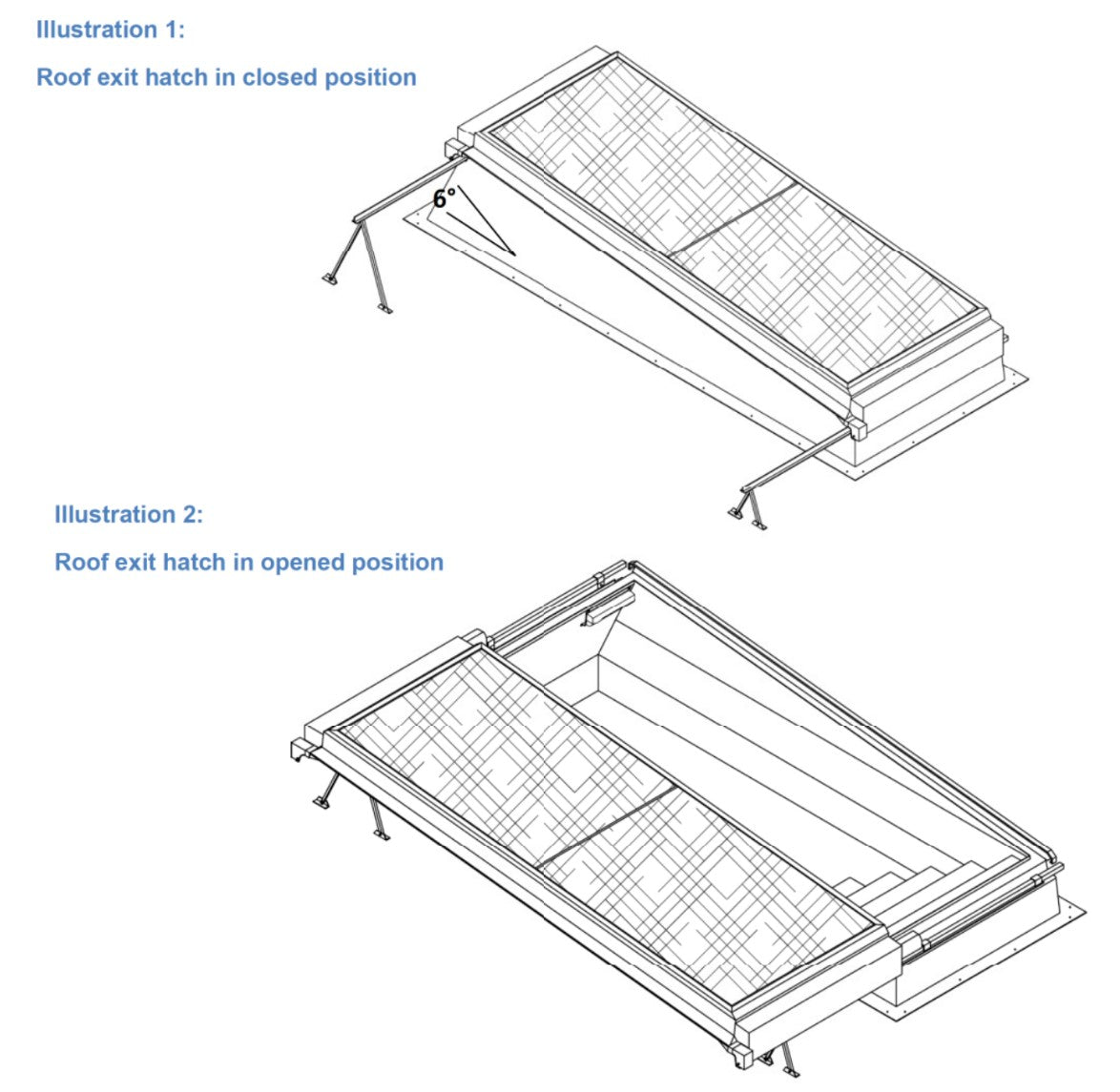

• Self-cleaning thanks to sloped glazing at 6°
• Uglass: 0.105 BTU/hr.ft².°F (0.6 W/m².K) per EN 673
• Uw,v – value of complete element: 0.13 BTU/hr.ft².°F (0.71 W/m².K)
• SHGC: 0.32 (as high as 0.49 by special order)
• Visual Transmittance: 0.60
